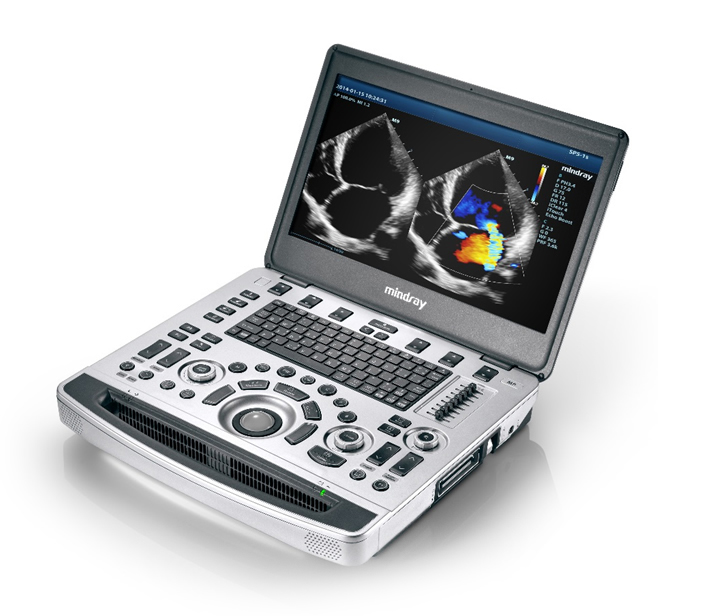

Ultrasound System

M9Vet

Premium Capability | Easy Mobility

Overview

Based on Mindray''s new generation ultrasound platform, mQuadro, M9Vet has raised the industry standards to an all new level. Advanced signal transmission and reception processors provide highly sensitive and accurate echo detection. Innovative transducer technologies allow for better penetration, higher resolution, greatly enhancing your diagnostic experience.


Performance
3T Transducer Technology with Single Crystal

Providing sharper images, all probes compatible with the M9Vet come equipped with Mindray’s unique 3T transducer technology. Enhanced with single-crystal technology, M9Vet offers better penetration and dynamic color flow, especially during difficult-patient scanning.

Echo Boost™

Mindray’s unique adaptive signal processing technology with intelligent echo detection is designed to utilize the native signal-to-noise information, to enhance the weak echo signals. At the same time, they are suppressing the surrounding clutter noise, providing more balanced image brightness and improved visualization of myocardium tissue layers.

Tissue Tracking with Quantitative Analysis

The TT QA functionality on M9Vet allows for a simple, quick, and non-invasive solution to evaluation left ventricular wall motion abnormalities. Supported by Mindray’s patented 3T technology with a single crystal, M9Vet significantly improves the tracking accuracy and effectiveness, controlling the image drift caused by the probe movement and respiration. With the added unique benefit of on-site analyses, the TT QA on M9Vet can be performed at the bedside , saving time and making complicated diagnoses much simpler.

Natural Touch Elastography

The latest Mindray patented technology- natural touch elastography, reduces user operation technique dependency. It also improves operator’s reproducibility for higher clinical utility.

  • Higher stiffness sensitivity
  • Good stability and reproducibility
UWN+ Contrast Imaging (Ultra-Wideband Non-linear)

M9Vet’s most significant advantage lies in its ability to support Mindray’s patented technology to enhance contrast imaging capability. UWN+ contrast imaging enables M9Vet to detect and utilize both 2nd harmonic and non-linear fundamental signals, generating images with significant enhancements.

  • More sensitive minor signal, reduced agent dosage
  • Longer agent duration with lower MI requirement
PSHI™(Phase Shift Harmonic Imaging)

The purified Harmonic Imaging for better contrast resolution provides clearer images with excellent resolution and less noise.

Tissue Harmonic Imaging (THI)

THI significantly enhances contrast resolution and improves image quality by utilizing second harmonics generated from tissue boundary layers, especially for technically challenging subjects.

iBeam™

Gain improved image quality based on auto structure detection.

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’
Multi-Beam Formation

The maximum 12 times tasking for one transmitted beam resulted in excellent time resolution and a higher frame rate.

Echo-enriched Beam Forming

Echo-enriched beam former permits the use of traditionally neglected echo signals of adjacent beams to form one more refined and robust imaging beam, providing better out-of-focusimage resolution and deeper image penetration.

Free Xros M™

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through a simultaneous display of up to 3 sample lines.

Free Xros CM™

Accurately evaluate myocardial motion at different phasesand simultaneously determine myocardial synchronization-- high frame-rate providing you with accurate results.

Auto EF

One intelligent way to analyze 2D echo clips to automatically recognize diastole/systole frames and output EDV/ESV/EF etc., results is the Simpson method.

TDI

Tissue Doppler Imaging allows you to quantitatively evaluate local myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.

iScape™

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much more accessible , smoother, and more controllable.

ExFOV

Discover better diagnostic information through an extended view of the anatomical structure on all convex and linear probes.

Trapezoid imaging

Discover better diagnostic information through an extended view of the anatomical structure on all linear probes.


Workflow
iZoom™

Gain instant full-screen view with the click of a single key.

iStation™

Mindray’s unique Patient Information Management System allows you to integrate, review, archive, and retrieve patient data effectively.

iZoom™

Gain instant full screen view on the click of a single key.

iTouch™

Gain instant auto image optimization in B, Color, and PW Modes with the click of a single key.

Raw Data

Enables optimum flexibility for post-processing the stored images, including parameter adjustments, adding comments and measurements, allowing maximum productivity during scanning.


Ergonomics
Innovative Crafted Unit
  • Thin Magnesium-alloy body
  • 15.6” LED HD monitor with slim design
  • Built-in battery providing 90 min scanning time
  • High capacity SSD hard drive making patient data safer


Customized Special Design Trolley
  • Inbuilt quick & easy locking system


Green All The Way
  • Noiseless system
  • Automatic brightness adjustment
  • Reliable RoHS certified materials
C5-1s
C6-2Gs
D7-2s
C11-3s
V11-3Ws
L10-3s
L12-4s
L14-6Ns
L16-4Hs
LM14-6s
L14-6ws
L20-5s
SP5-1s
P10-4s
P7-3s
P7-3Ts
