Mindray Animal Medical

Automated Clinical Chemistry Analyzer for Life Science

Research-grade performance.
Reproducible results.
Streamlined workflows.

100 - 150

Tests / hour

Throughput

4 µL

Avg Sample Volume

Flexibility

30 + 30

Positions

Reagents & Samples

< 5 µL

Dead Volume

Small Sample Ready

12

Wavelengths

Photometry Range

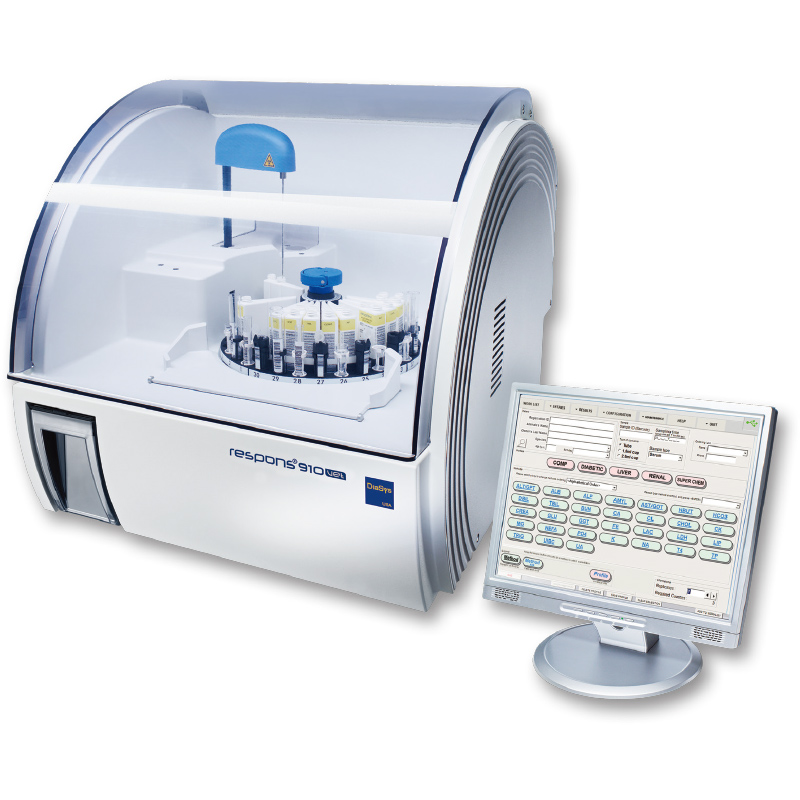

As part of Mindray Animal Medical's Life Science portfolio, the respons® 910VET supports clinical chemistry testing in academic institutions, research and reference laboratories, and preclinical and clinical research settings. The system performs routine, specialty, and calculated chemistry testing on a single platform, helping laboratories generate reproducible results and high-quality research data.

Proven Science

Excellent correlation to reference methods
Broad measuring ranges with low-end sensitivity and extended linearity
Optimized chemistry applications with analyzer and reagents from one vendor
Experienced manufacturer backed by over 30 years of reagent development experience
High reliability and performance demonstrated with over 1000 systems placed worldwide

Proven Performance

Excellent Intra- and Inter-Assay precision across endpoint and kinetic methods
Smart engineering and design with automated dilution/re-run, automated clot detection and automated minimization of interfering substances
Minimal sample volume requirements with average of only 4 µL per test and dead volumes of < 5µL
Flexible, open system architecture, scalable to new and unique assays
Full customization of testing with 30 specimen and 30 unique chemistry positions on-board

Intra and Inter-Assay Precision and Recovery

Parameter		Target	Mean	Recovery %	CV % Intra	CV % Inter
AMY (U/L)	N	74.7	75.8	102	1.64	2.63
AMY (U/L)	P	250	258	103	1.8	2.12
CHOL (mg/dL)	N	135	140	104	2.13	2.29
CHOL (mg/dL)	P	204	210	103	1.66	2.86
GGT (U/L)	N	28.3	29.2	103	1.77	1.70
GGT (U/L)	P	89.5	89.4	99.9	1.92	1.48
TP (g/dL)	N	5.28	5.18	98	1.22	1.39
TP (g/dL)	P	6.45	6.5	101	0.94	1.13
UREA (mg/dL)	N	43.9	44.9	102	2.48	3.58
UREA (mg/dL)	P	156	170	109	2.11	2.28

N-TruLab N = Normal control; P-TruLab P = Pathological control n=20

Proven Innovation

Innovation is a core principle upon which we manage our Life Science business. Our instrument line continues to expand with higher-throughput systems designed to deliver comprehensive menu options in higher-volume settings. Our offerings are growing across clinical chemistry, hematology, electrolyte testing, cell morphology, imaging, patient monitoring, life support, and integrated research laboratory solutions. This commitment to innovation keeps our customers at the forefront of the latest technological advances in research laboratory diagnostics. All systems are designed to provide flexibility, allowing laboratories to configure testing workflows according to their clinical, operational, and budgetary requirements.

Proven Efficiency

Simplified ease of use with an intuitive user interface, on-board QC documentation and minimal software-guided maintenance requirements

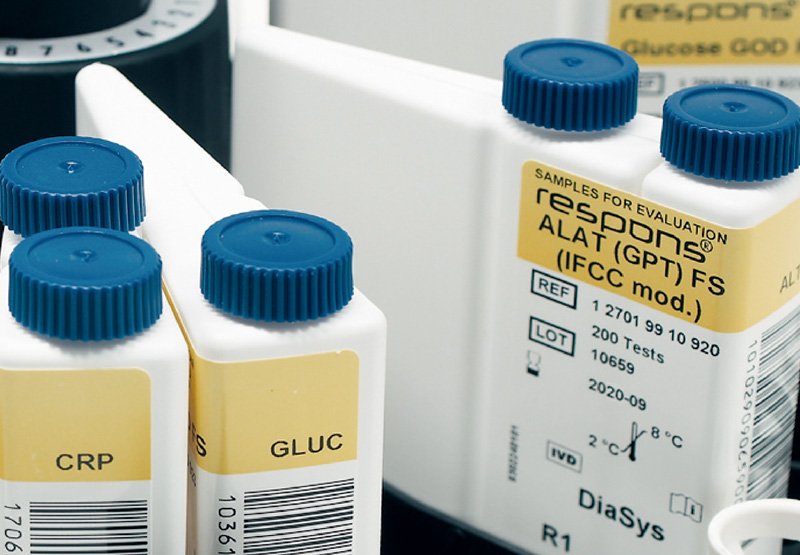

Ready-to-use liquid reagents require no preparation and offer onboard room-temperature stability for simplified reagent management
Economical to operate with low cost per test and low cost of ongoing service agreements
Positive sample identification with primary tube bar code capability
Maximum study control and result turnaround time by eliminating sample handling and transport

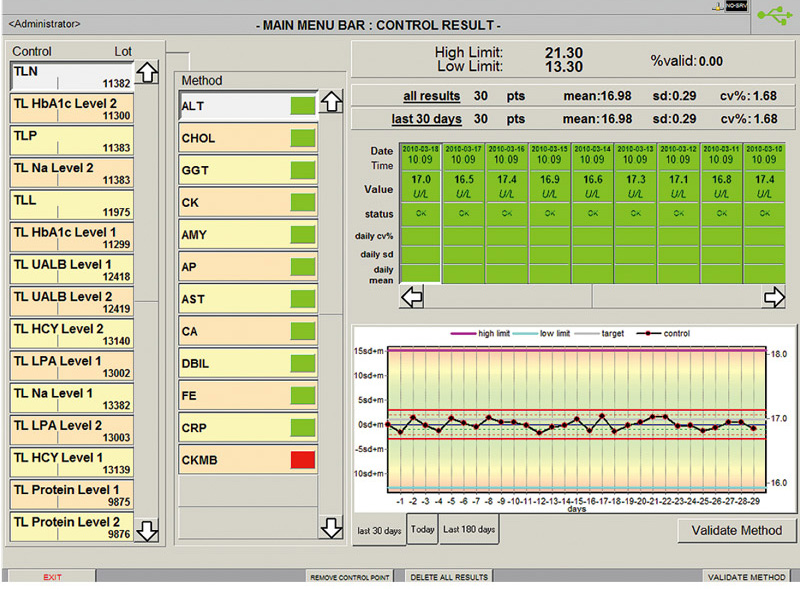

Clear QC Documentation

Proven Commitment to Quality:

Innovative system design delivers results of the highest quality

Reagent applications for the respons910®VET system are specifically configured to minimize the impact of interfering substances such as lipids, bilirubin and hemoglobin in samples. Extended linearity of our assays nearly eliminates repeat testing due to sample results being out of range. Our fully integrated system—made up of easy-to-use analyzer, proprietary reagents and optimized applications—assures the most cost-effective and highest-quality results, time after time. Quality you can count on. To us, the proof is in the results!

Technical Information
System type	Bench top clinical chemistry analyzer
Throughput	150 tests/hour
Reagent/sample tray	30 reagent positions plus 30 sample positions; combined in single tray
Dead volume	As little as 5 µL
Sample types	Serum, plasma, whole blood, urine, and other fluids
Sample volume	2 – 30 μL
Reagent pipetting volume	Reagent 1: 120 – 250 μL Reagent 2: 10 – 130 μL
Sensors	Liquid-level sensor, clot sensor and crash sensor
STAT-analytics	2 sample positions for loading of emergency samples at any time
Bar code identification	Automatic bar code scan for reagents and samples
Measuring principle	Colorimetry (rate; end point)
Sample tubes/cups	Primary tubes of 3, 5, 7 and 10 mL and sample cups and microcentrifuge tubes (0.5, 1.5 and 2.5 mL)
Reaction temperature	37 ± 0.2 °C
Photometry	12 wavelengths: 340, 380, 405, 450, 480, 508, 546, 570, 600, 660, 700 and 800 nm (mono- and bichromatic)
PMS/LIS connectivity	Yes
Remote diagnostics	Yes
System interface	Analyzer - PC: USB connectivity bi-directional; CPU: Pentium IV or higher
Power source	AC 110/220 V, 60/50 Hz; 300 VA excluding PC/printer/monitor
Dimensions	24 in (W) x 26 in (D) x 24 in (H) / 60 cm (W) x 67 cm (D) x 60 cm (H)
Weight	132 lbs / 60 kg
