Veterinary Ultrasound System

M6Vet

Your daily success for veterinary imaging
Contact Us

Overview

For modern veterinary clinics, what are the biggest challenges you need to face every day? How do you expand clinical capabilities to offer new services? How do you maximize the utilization of your ultrasound scanner to increase the throughput? How do you satisfy the needs of patients and referrers to differentiate your clinics from others?

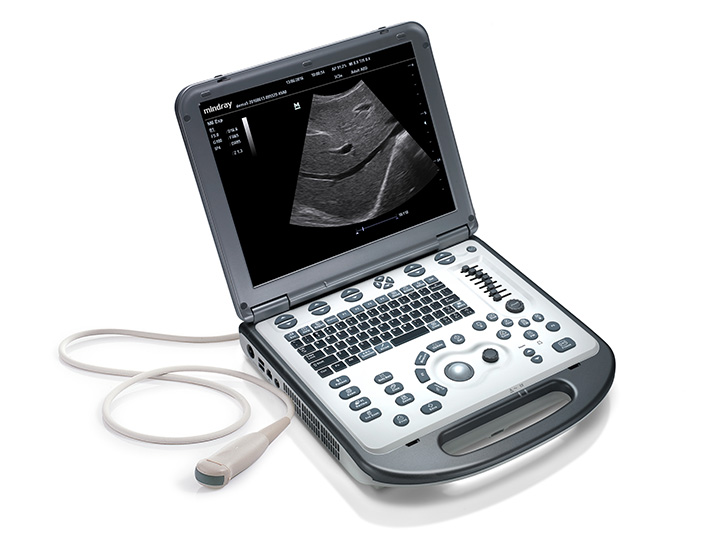

If the issues above are your concern, then Mindray’s hand-carried ultrasound system M6Vet is the answer. With 3T Transducer Technology™, a comprehensive veterinary share service and reproduction package, and one push button iTouch™ image optimization technology, M6Vet enables your daily success for routine veterinary exams.


Performance
PSH™ (Phase Shift Harmonic Imaging)

The purified Harmonic Imaging provides clearer images with excellent resolution and less noise.

iClear™(Speckle Suppression Imaging)

Gain improved image quality based on auto structure detection.

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’

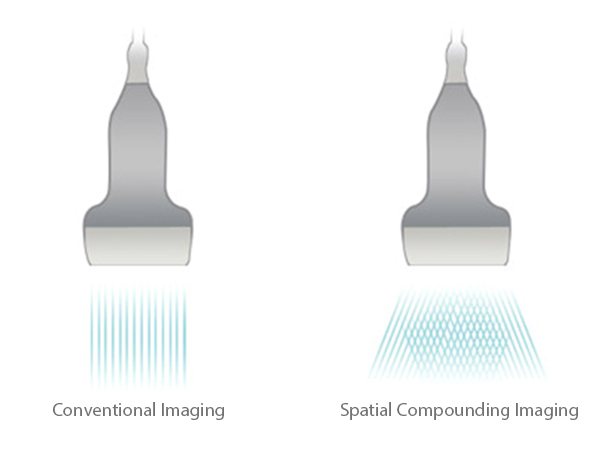

iBeam™

Permits multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

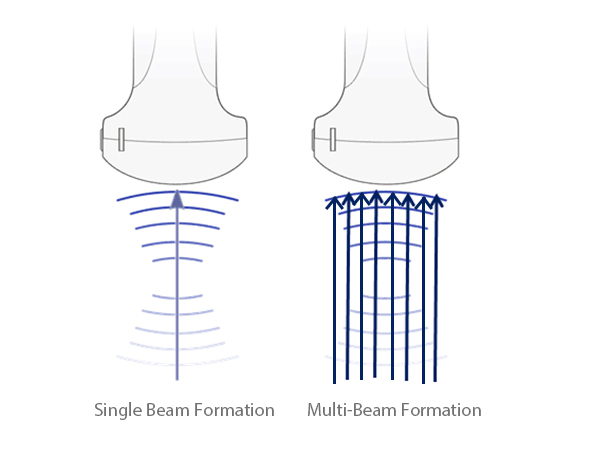

Multiple Beam Formation

Maximum of eight times tasking of one transmitted beam, resulting in excellent time resolution and higher frame rate.

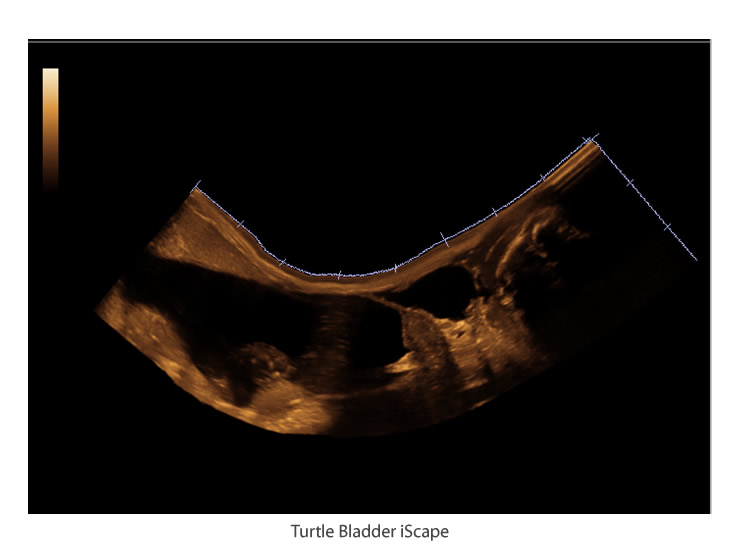

iScape™

Panoramic imaging gives the user a complete and expanded view of anatomical structures. Couple this with velocity indication and forward/backward scanning abilities, and scanning becomes easier, smoother, and more easily controlled

Smart Tracking

Mindray’s unique function: Continuously tracks the color flow and optimizes the best Color box position and angle in real-time scanning.

Smart Doppler

Automatically optimizes the size and position of the color box and Doppler gate placement to ensure the optimal signal color and spectral Doppler sampling.

Free Xros M™

Get precise anatomical observation by freely placing sample lines at any angle. Attain better images through a simultaneous display of up to 3 sample lines.


Workflow
iStorage™

Directly transfer veterinary images and reports to PC via network cable.

iTouch™

Obtain instant auto image optimization in B, Color and PW Modes with a single click.

iZoom

Get instant full-screen view with a single click.

iStation™

Mindray’s unique Patient Information Management System allows you to integrate, review, archive ,and retrieve patient data effectively.

DICOM

Comprehensive DICOM solution.

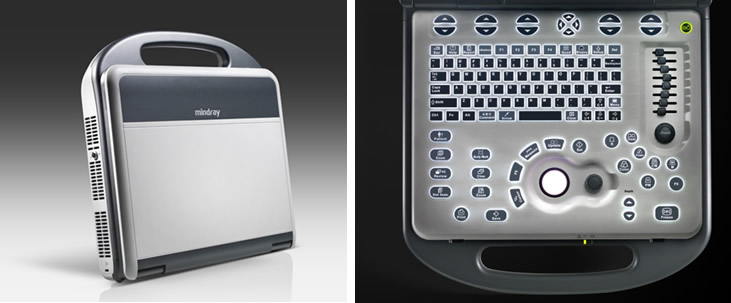

Ergonomics
  • Lightweight Hand-carried design
  • Specially designed cart with built-in handle
  • 1TB high hard drive capacity
  • Up to 90 min uninterrupted scanning with rechargeable battery

Professional Design for Veterinary Use
  • Veterinary information management tool for more than six types of animals
  • Up to 22 veterinary body marks
  • Abdomen, cardiac, reproduction, vascular, small parts, and MSK exam types and analysis packages for different animals
  • User-defined formulas for more applications
Convex
6C2s

Center Frequency: 6.5MHz

3C5s

Center Frequency: 3.5MHz

C11-3s

Center Frequency: 7.5MHz

Linear
7L4Bs

Center Frequency: 7.5MHz

L12-4s

Center Frequency: 8.0MHz

L14-6Ns

Center Frequency: 10MHz

L14-6s

Center Frequency: 10MHz

Phased array
2P2s

Center Frequency: 2.5MHz

P4-2s

Center Frequency: 2.5MHz

P7-3s

Center Frequency: 5MHz

Endocavity
6LE5Vs

Center Frequency: 2.5MHz

6CV1s

Center Frequency: 6.5MHz
