Veterinary Ultrasound System

Z60 Vet

Contact Us

Overview

The Z60 Vet is a powerful and versatile Color Doppler system which provides you the best solution for veterinary ultrasound imaging with excellent performance. Due to the comprehensive configurations, dedicated veterinary workflow and integrated design, you can be assured of an outstanding ultrasound experience in both large and companion animals. Packed with professional innovative technology inside this smart portable system makes Z60 Vet a perfect veterinary ultrasound system with excellent image quality and various advanced features.


Performance
PSH™ (Phase Shift Harmonic Imaging)

Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.

iClear™(Speckle Suppression Imaging)

Gain improved image quality based on auto structure detection.

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’

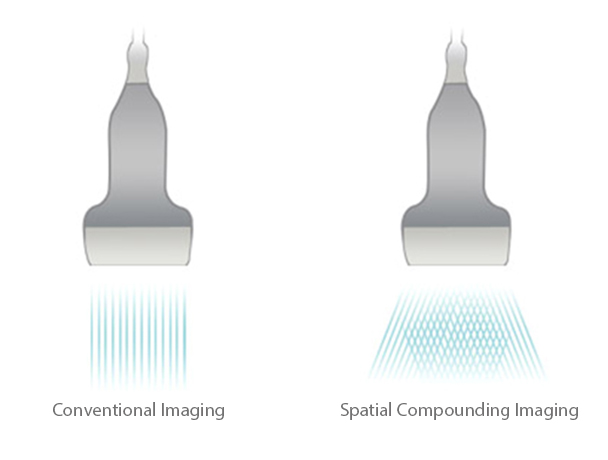

iBeam™

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization.

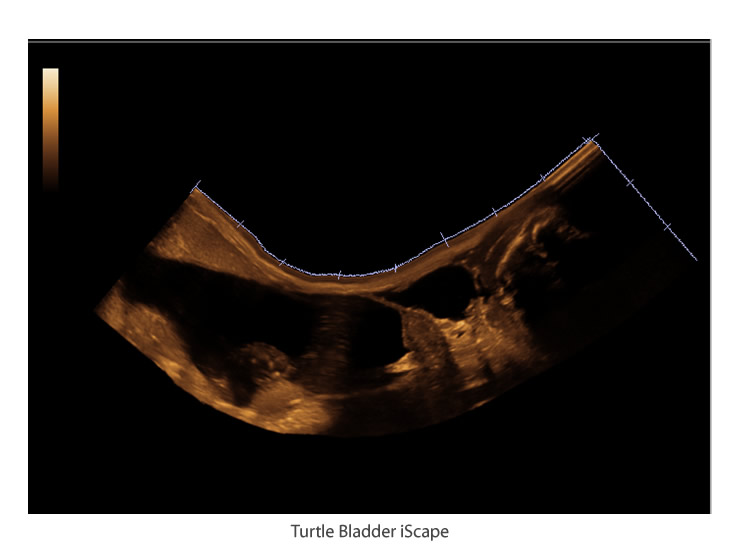

iScape™

Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.

ExFOV

Discover better diagnostic information through extended view of the anatomical structure on all convex and linear probes.

B-Steer™

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.

Free Xros M™

Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.

Color M

Color Flow M mode and Color Tissue M mode offer you more details on veterinary diagnosis.

TDI

Tissue Doppler Imaging allows you to quantitatively evaluate animal myocardial movement and function, providing complete TDI modes for faster and direct diagnoses.


Workflow
iStorage™

Directly transfer veterinary images and reports to PC via network cable.

iTouch™

Gain instant auto image optimization in B, Color and PW Modes on the click of single key.

iZoom

Gain instant full screen view on the click of a single key.

iStation™

Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

DICOM™

Comprehensive DICOM solution.


Ergonomics
  • 60 degree tilting angle adjustable monitor
  • Integrated design with internal AC power adapter
  • 1.5h uninterrupted scanning with rechargeable battery
  • 15-inch High Definition monitor with full screen design
  • Water-proof protection cover designed for veterinary keyboard
  • Backlit control panel designed for veterinary diagnosis in clinics
  • Can be packed in a convenient hand-carried bag for easy transportation
Micro-convex
6C2P

Center Frequency: 6.5MHz

Convex
3C5P

Center Frequency: 3.5MHz

Linear
7L4P

Center Frequency: 7.5MHz

7L5P

Center Frequency: 7.5MHz

L14-6P

Center Frequency: 10MHz

7LT4P

Center Frequency: 10MHz

Phased array
2P2P

Center Frequency: 2.5MHz

P7-3P

Center Frequency: 5MHz

Endocavity
6LE5VP

Center Frequency: 6.5MHz

V10-4BP

Center Frequency: 6.5MHz

6CV1P

Center Frequency: 6.5MHz

CB10-4P

Center Frequency: 6.5MHz

6LE7P

Center Frequency: 6.5MHz
